VIVA
VIVA

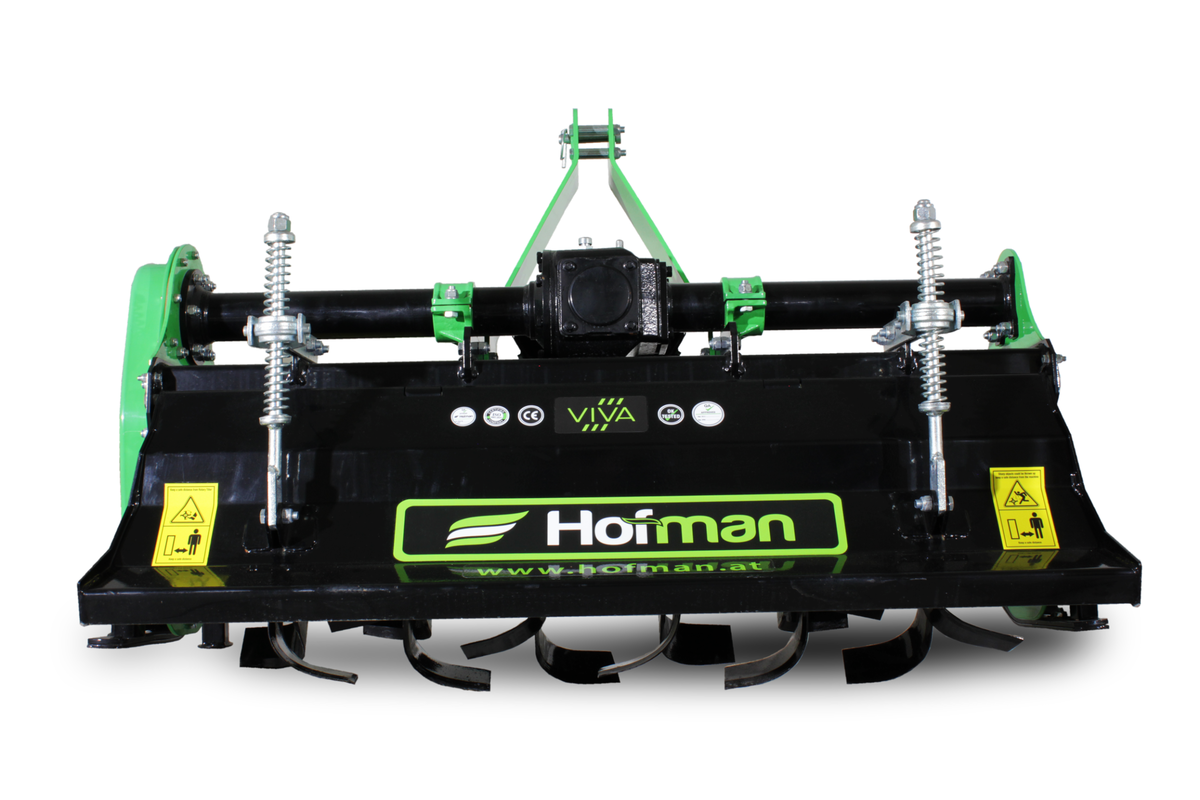

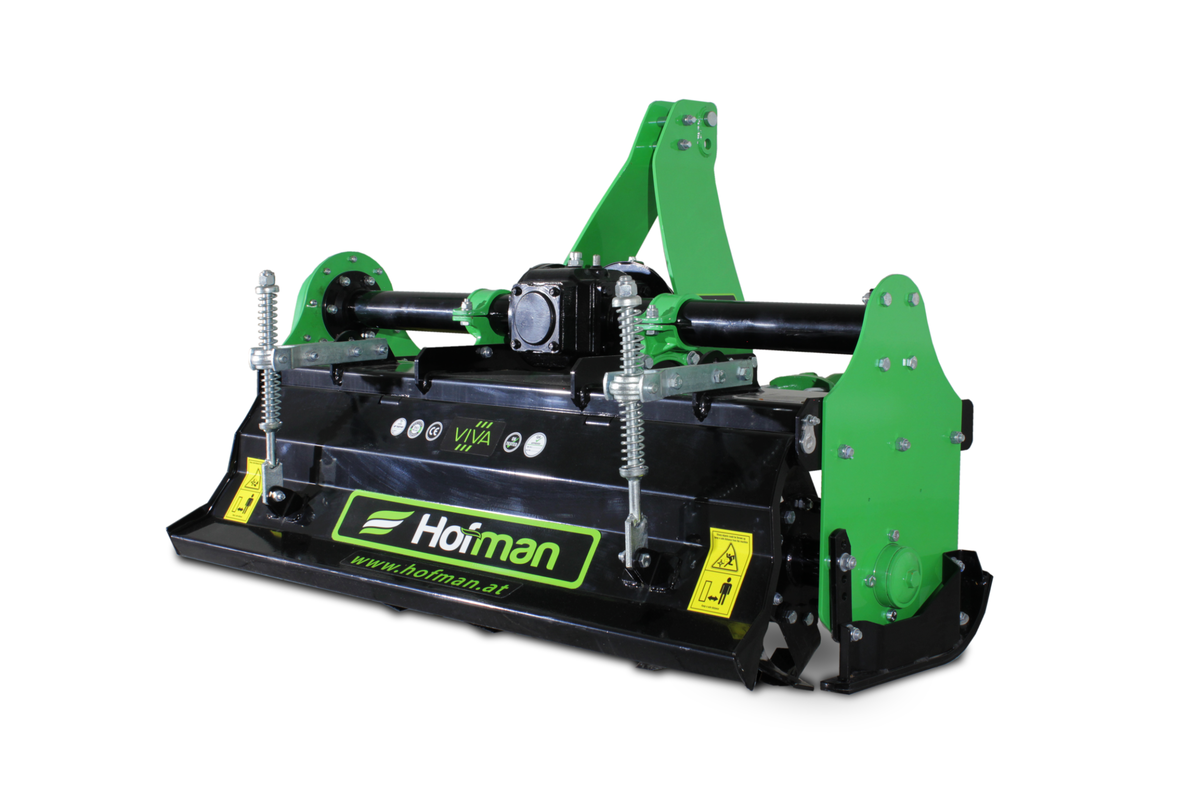

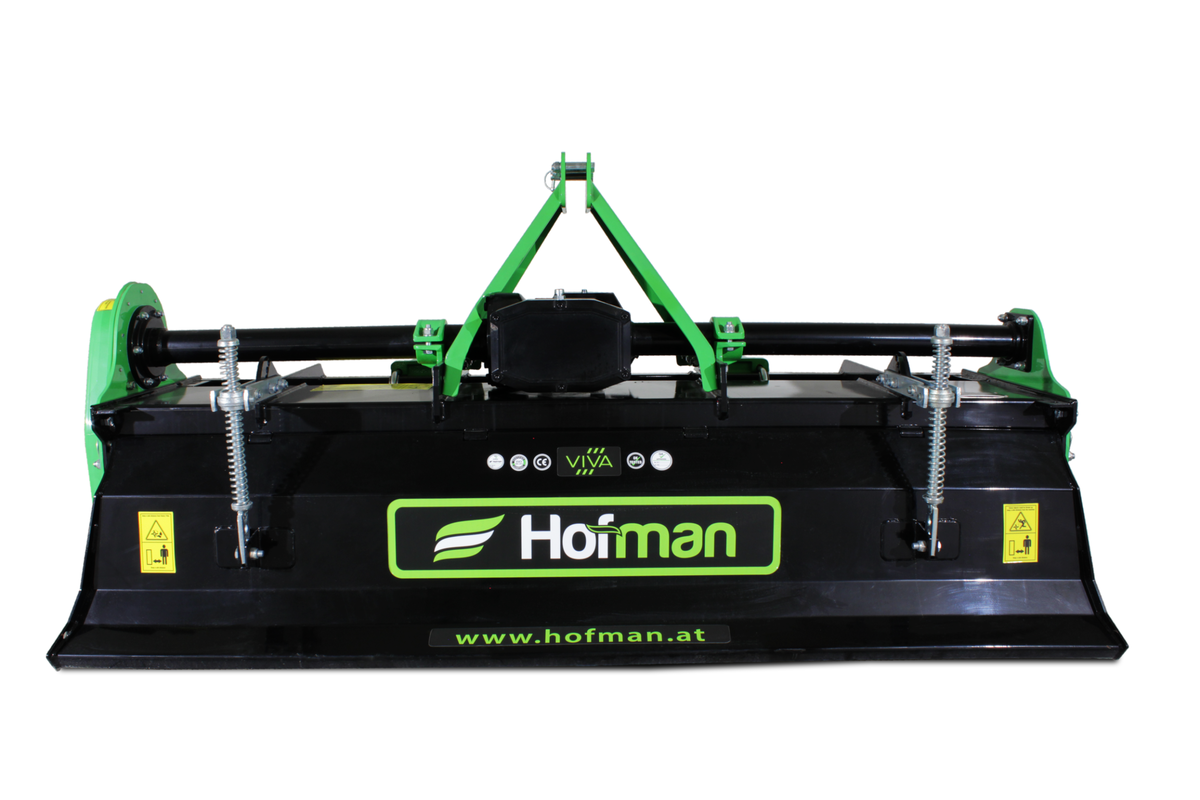

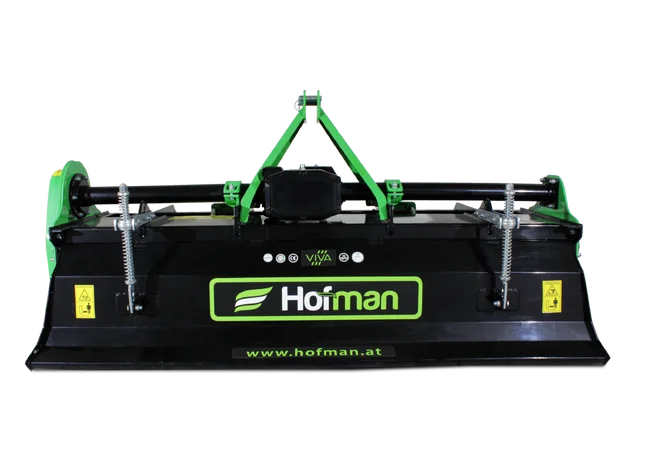

The VIVA tillage lines represent an excellent solution for high-quality soil cultivation. They are equipped with C blades, which are distributed on the rotor in a spiral shape. The rear spring-loaded leveling gates ensure even more evenly cultivated fields. With a wide range of working widths, both small and larger farmers will find a suitable machine.
-
VIVA CRT 120
-
VIVA CRT 140
-
VIVA CRT 160
-
VIVA CRT 180
-
VIVA CRT 200 PRO
-
VIVA CRT 230 PRO
-
VIVA CRT 260 PRO

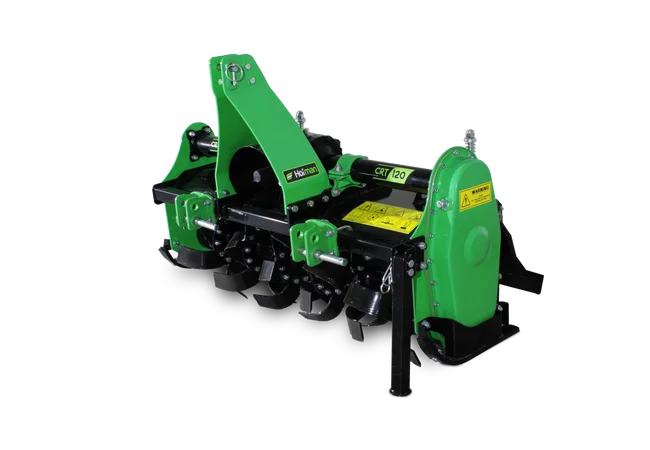

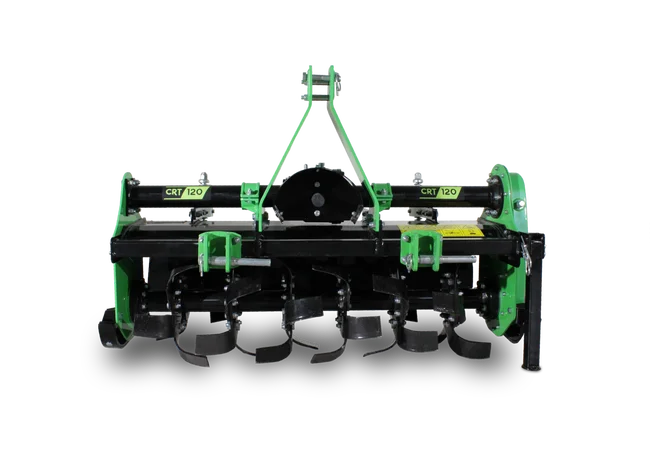

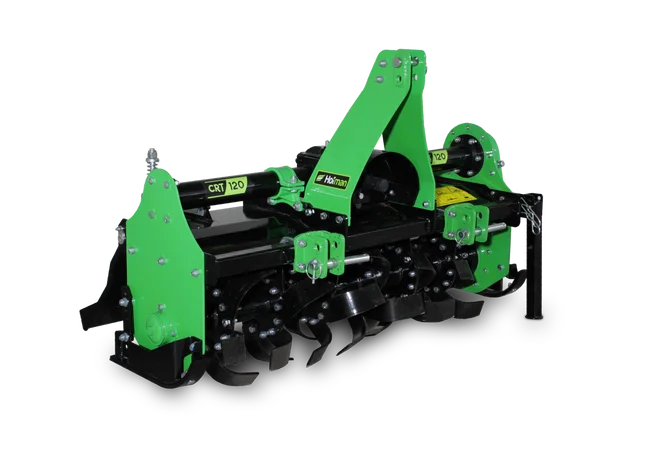

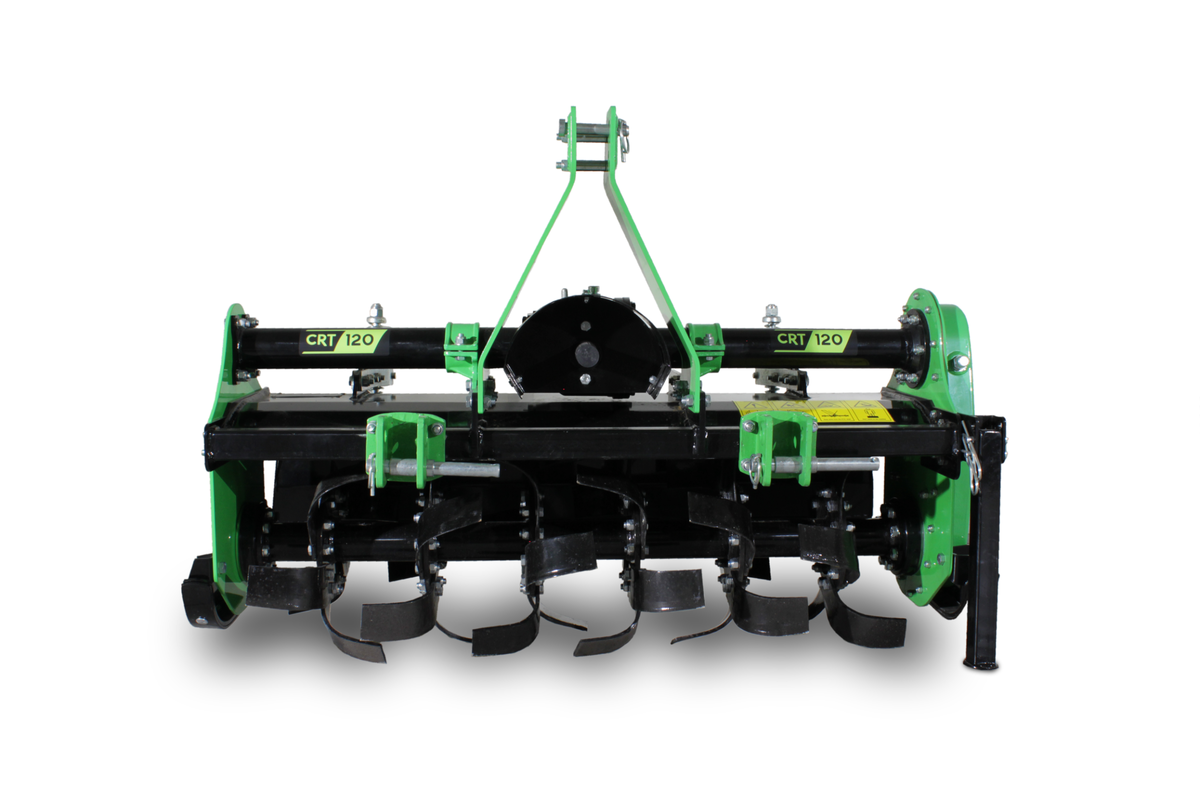

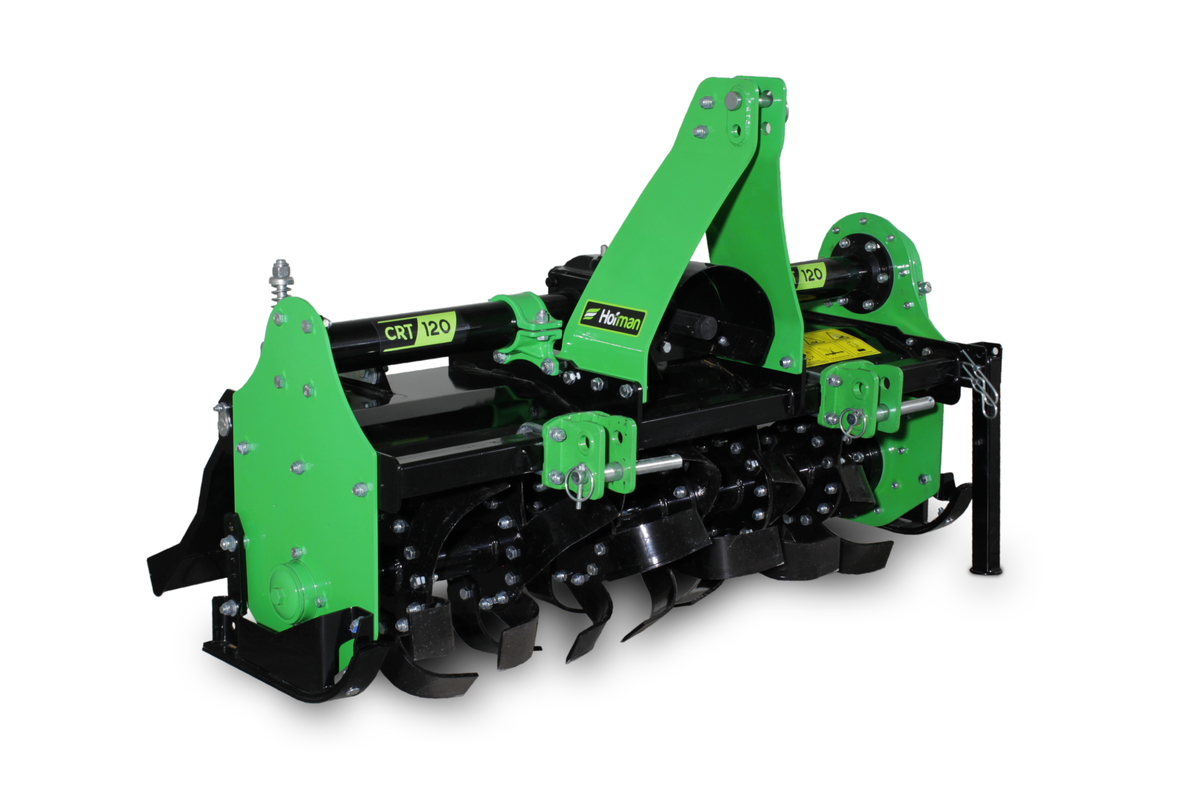

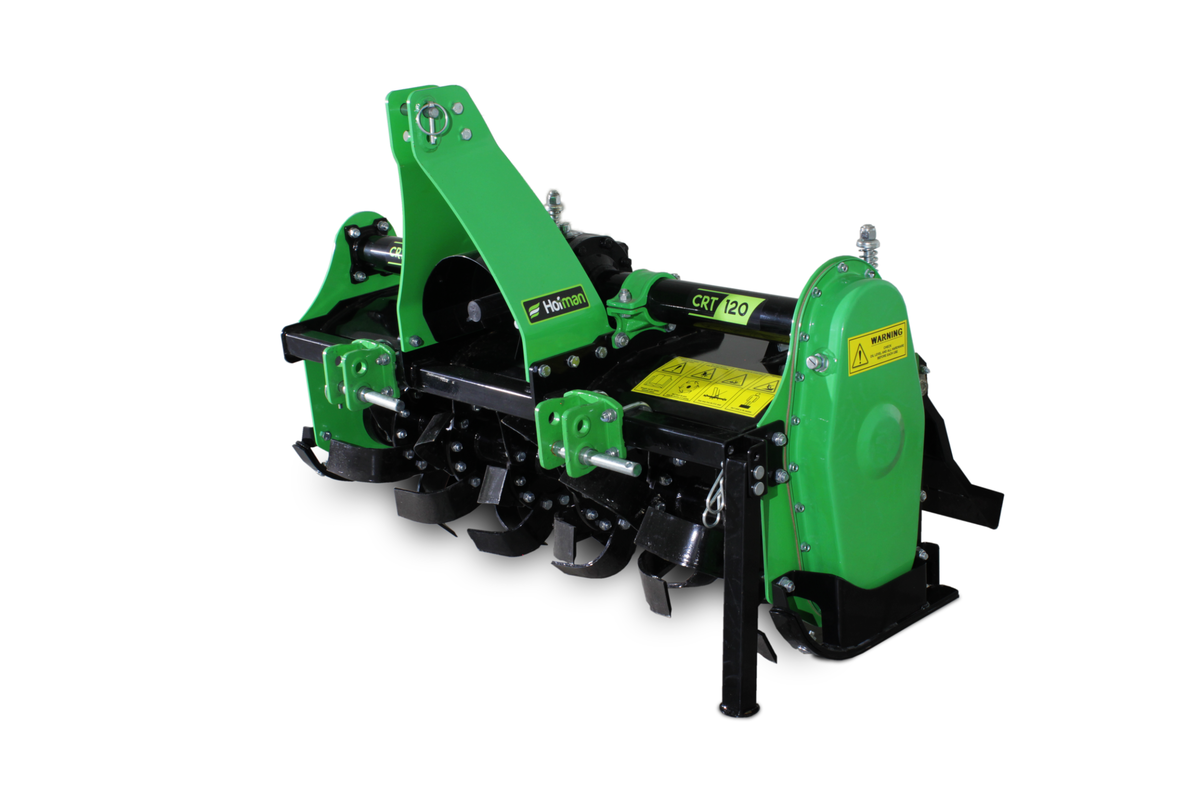

CRT 120
Click to enlarge the photo to see the full gallery.

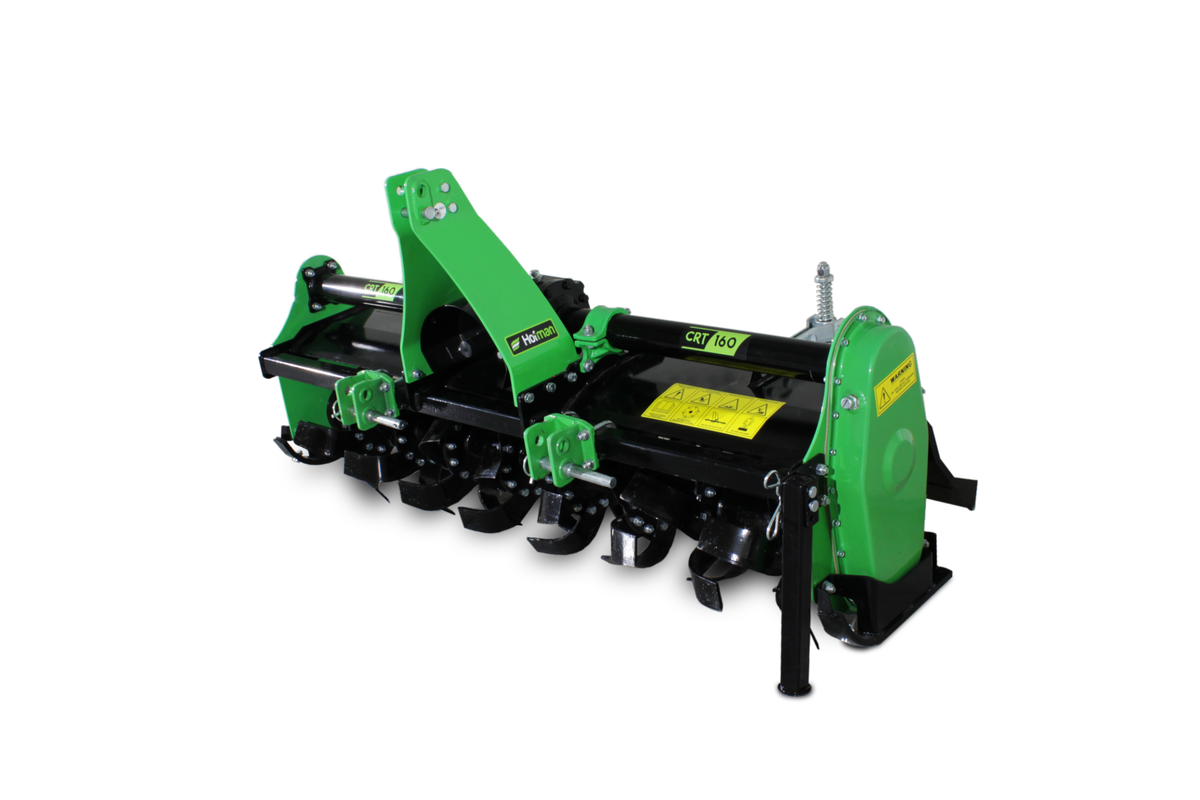

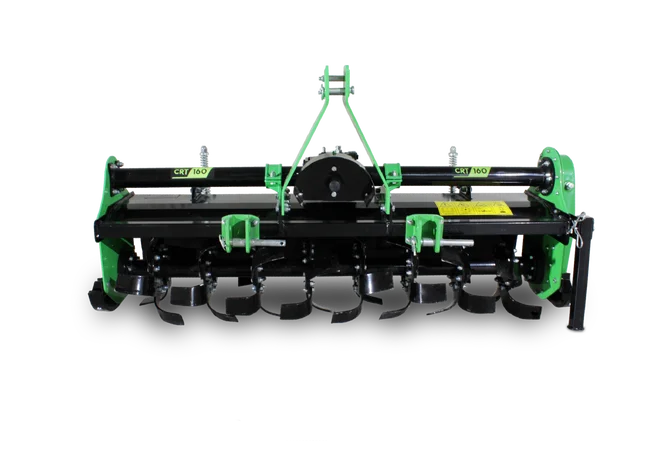

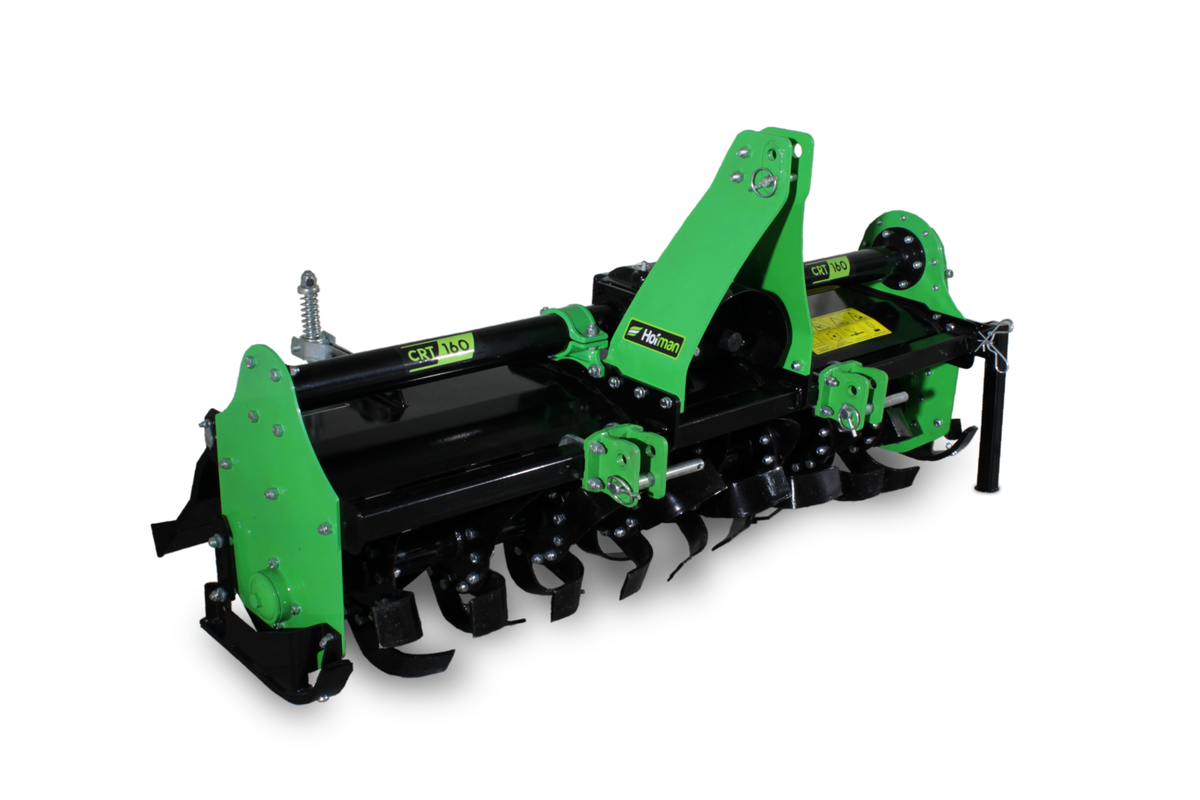

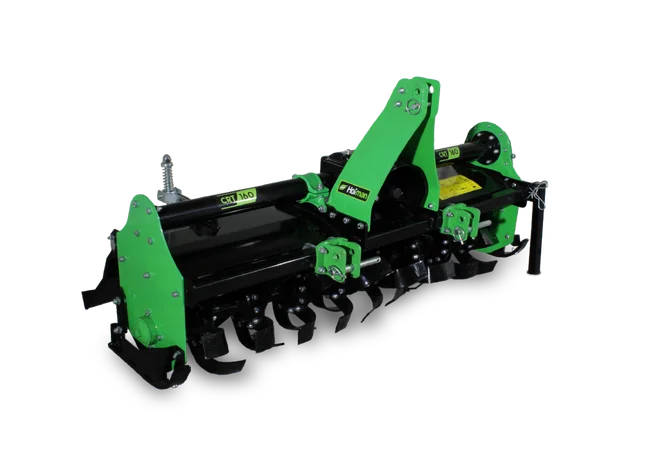

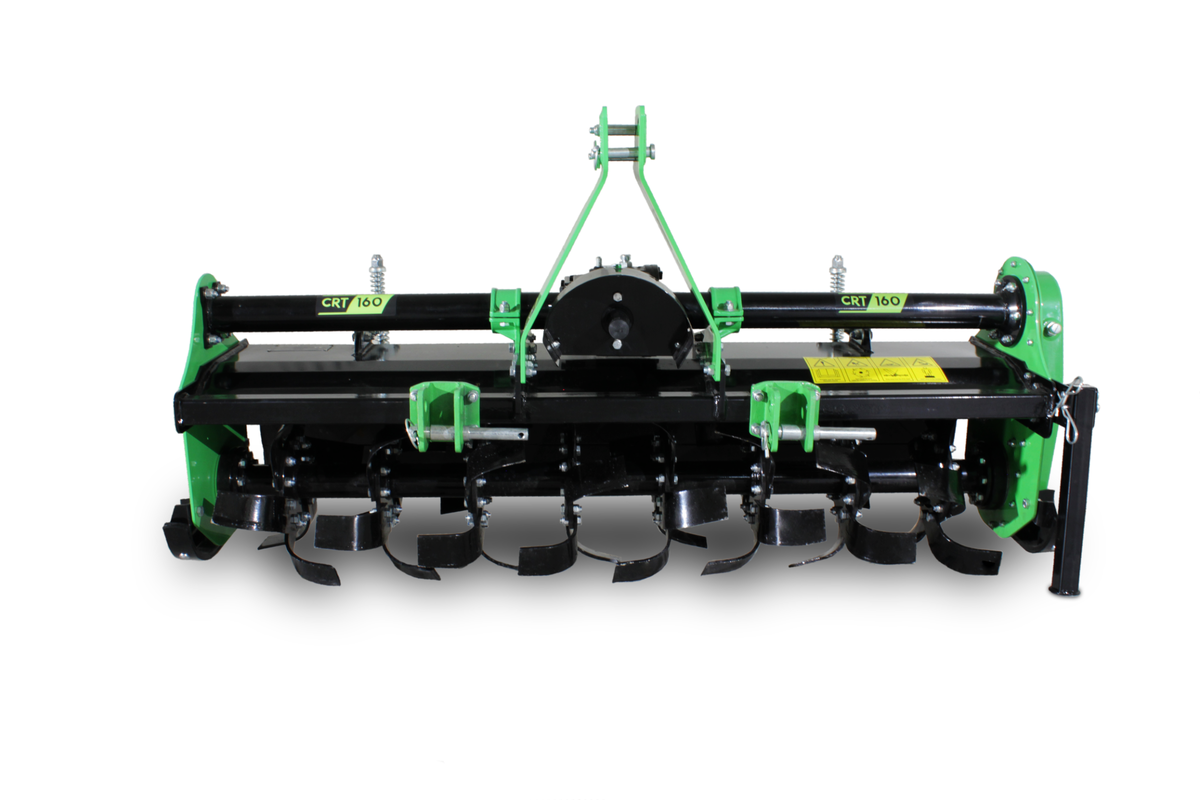

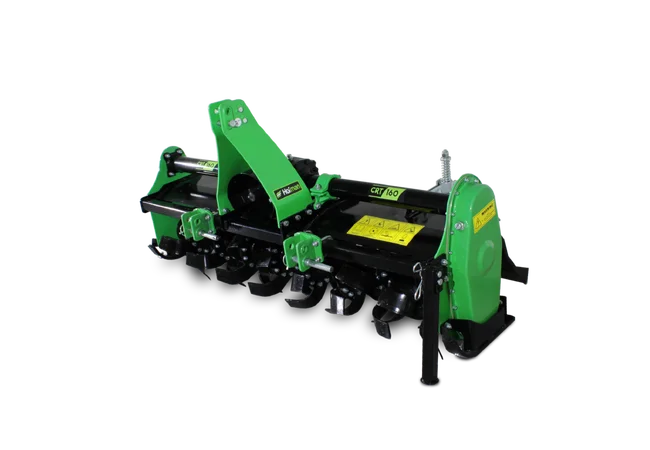

CRT 160
Click to enlarge the photo to see the full gallery.

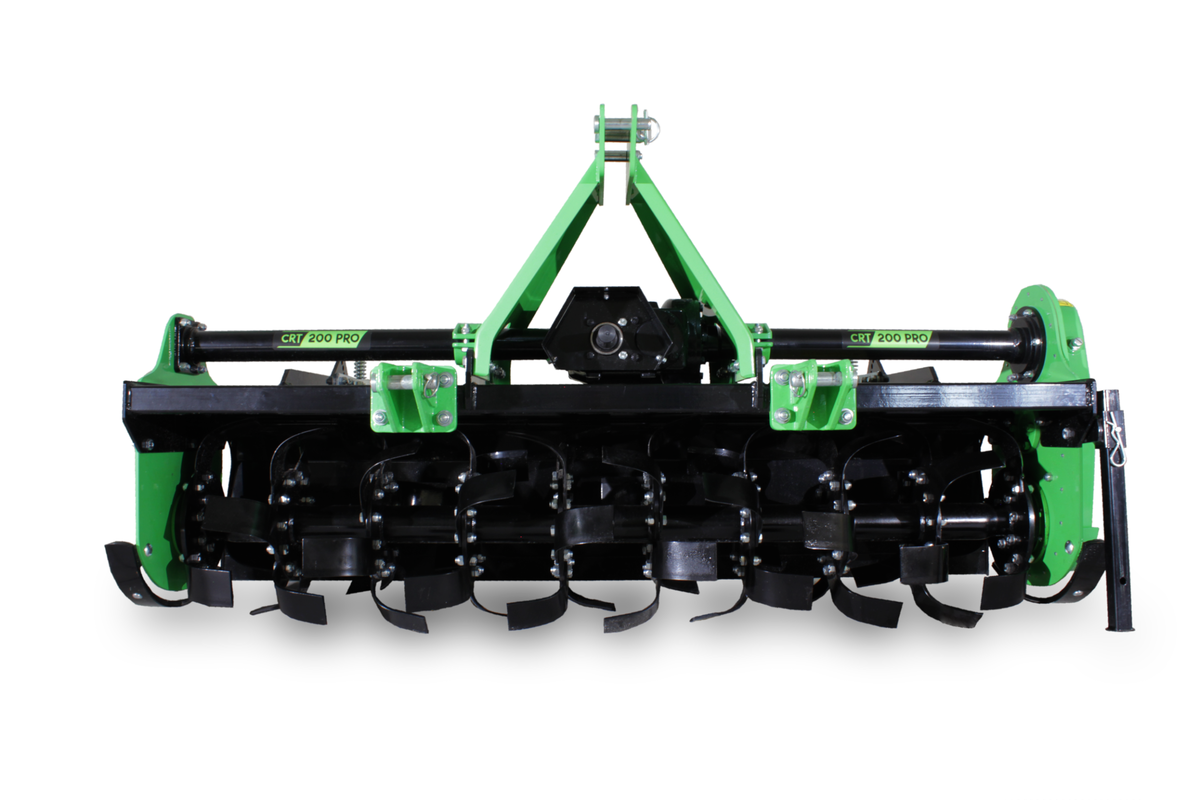

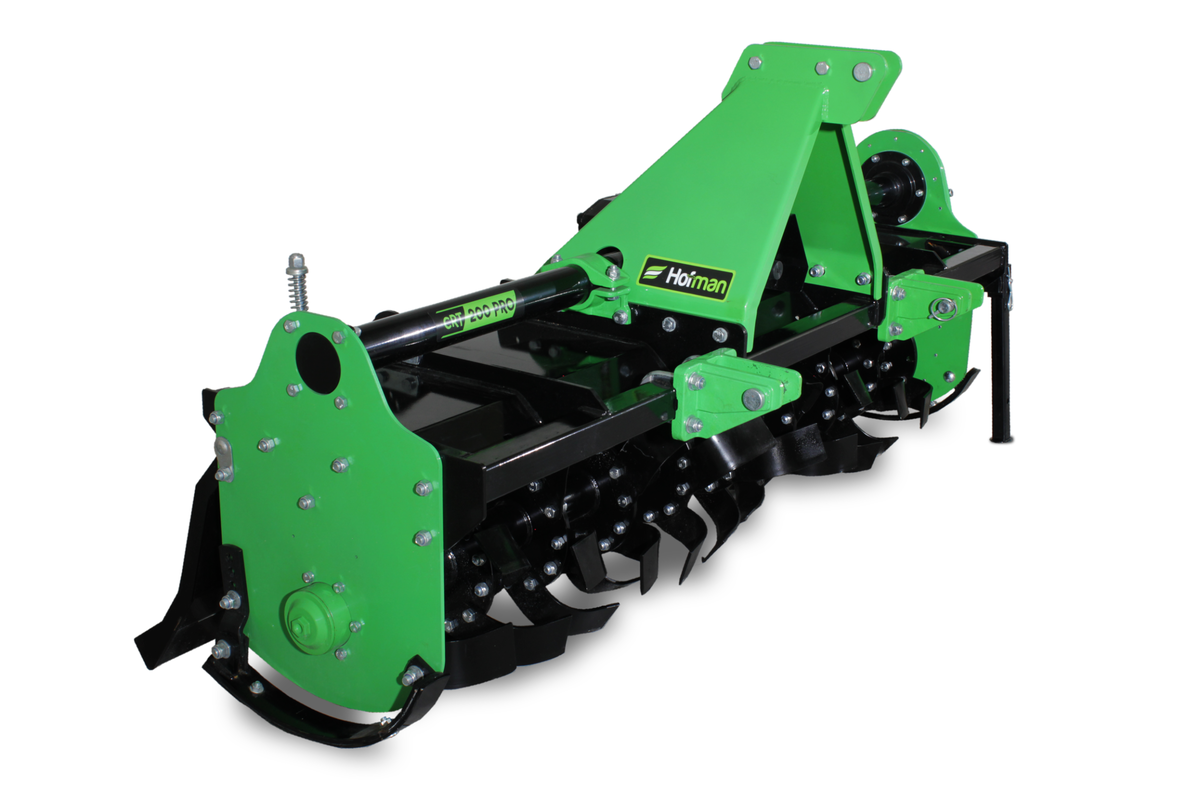

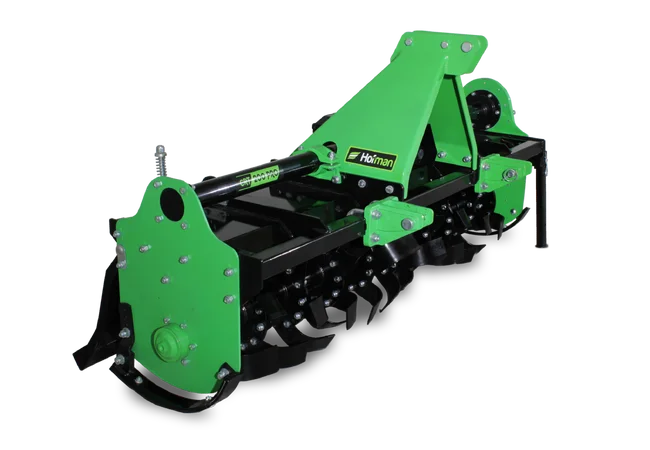

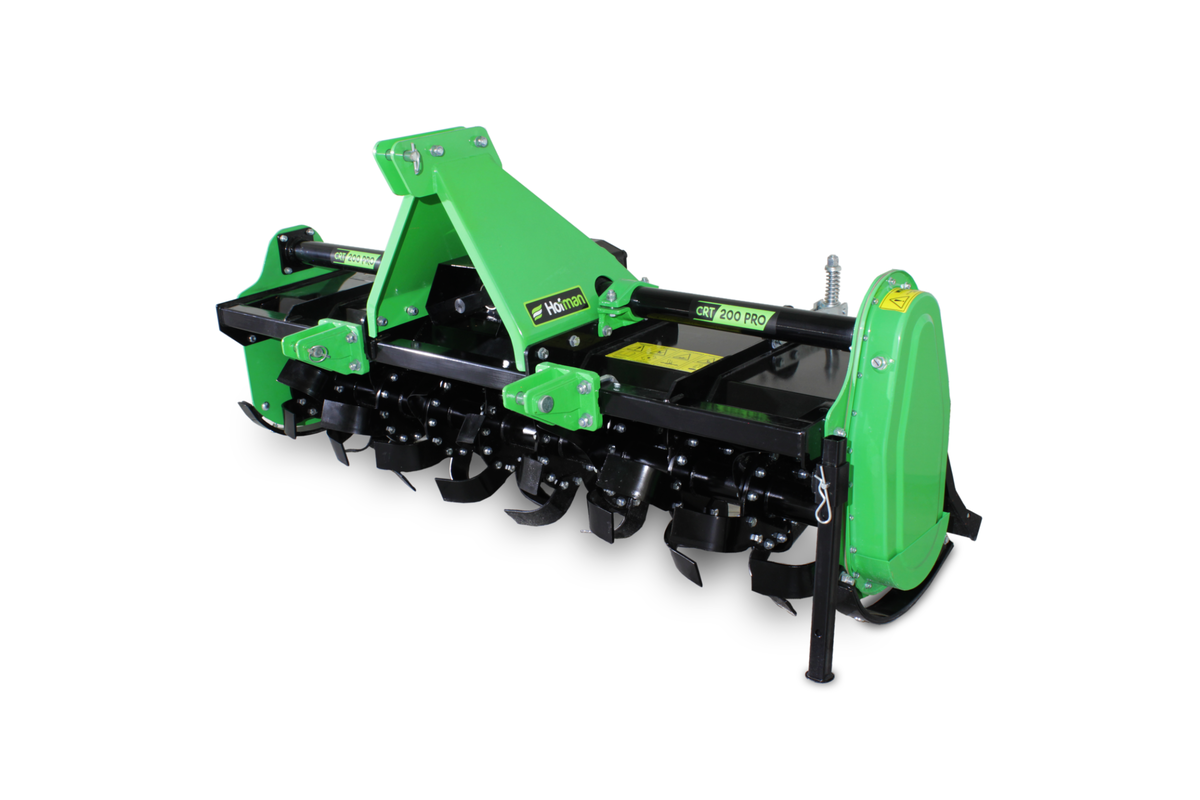

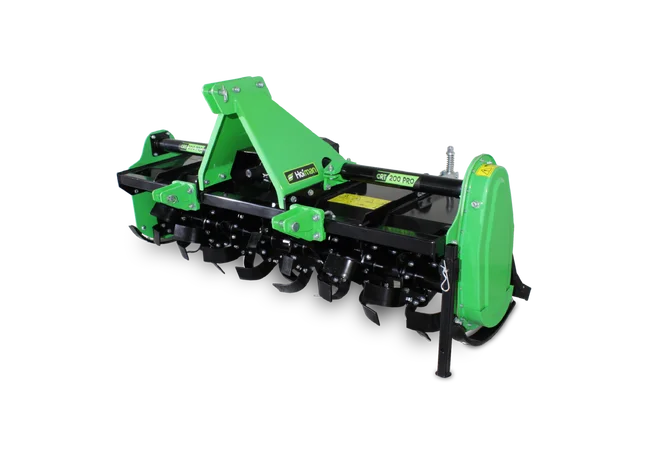

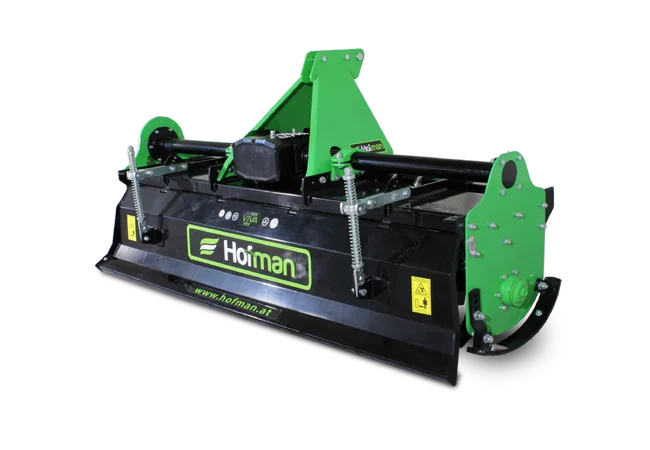

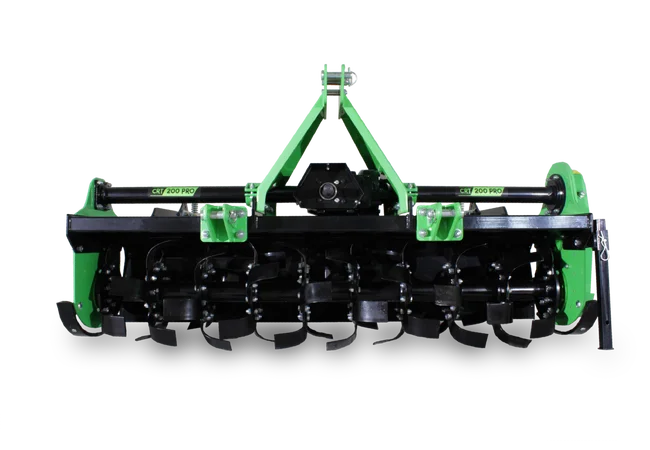

CRT 200 PRO
Click to enlarge the photo to see the full gallery.
| Model | VIVA CRT 120 | VIVA CRT 140 | VIVA CRT 160 | VIVA CRT 180 | VIVA CRT 200 PRO | VIVA CRT 230 PRO | VIVA CRT 260 PRO |
|---|---|---|---|---|---|---|---|
| Number of knives | 36 | 42 | 48 | 54 | 48 | 54 | 60 |
| Working width (cm) | 120 | 140 | 160 | 180 | 200 | 230 | 260 |
| Recommended minimum tractor power (HP) | 25 - 30 | 30 - 35 | 35 - 40 | 40 - 45 | 50 - 60 | 60 - 70 | 70 - 80 |
| Weight (kg) | 245 | 270 | 290 | 310 | 535 | 595 | 610 |
| Revolutions of the driveshaft (rpm) | 540 | 540 | 540 | 540 | 540/1000 | 540/1000 | 540/1000 |
| Connection category | CAT I/II | CAT I/II | CAT I/II | CAT I/II | CAT II | CAT II | CAT II |
| Total width (cm) | 140 | 160 | 180 | 200 | 225 | 250 | 280 |
| Working depth (mm) | 101 | 101 | 101 | 101 | 152 | 152 | 152 |
| Number of rotors | 6 | 6 | 8 | 9 | 8 | 9 | 10 |
| Depth adjustment wrench | YES | YES | YES | YES | YES | YES | YES |
| Number of cardan revolutions | 540 | 540 | 540 | 540 | 540/1000 | 540/1000 | 540/1000 |
Number of knives
Working width (cm)
Recommended minimum tractor power (HP)
Weight (kg)
Revolutions of the driveshaft (rpm)
Connection category
Total width (cm)
Working depth (mm)
Number of rotors
Depth adjustment wrench
Number of cardan revolutions
|
Model
Number of knives
36
42
48
54
48
54
60
|
Model
Working width (cm)
120
140
160
180
200
230
260
|
Model
Recommended minimum tractor power (HP)
25 - 30
30 - 35
35 - 40
40 - 45
50 - 60
60 - 70
70 - 80
|
Model
Weight (kg)
245
270
290
310
535
595
610
|
Model
Revolutions of the driveshaft (rpm)
540
540
540
540
540/1000
540/1000
540/1000
|
Model
Connection category
CAT I/II
CAT I/II
CAT I/II
CAT I/II
CAT II
CAT II
CAT II
|
Model
Total width (cm)
140
160
180
200
225
250
280
|
Model
Working depth (mm)
101
101
101
101
152
152
152
|
Model
Number of rotors
6
6
8
9
8
9
10
|
Model
Depth adjustment wrench
YES
YES
YES
YES
YES
YES
YES
|
Model
Number of cardan revolutions
540
540
540
540
540/1000
540/1000
540/1000
|
